Solar Roof Tiles
Maximum thin film power
The Solar Roof Tile is the ultimate thin film roof application, based on Sagitta Technologies’ MiaSolé high efficiency Thin Film cells. Finally, all visible surface of a curved solar roof tile can be efficiently used, allowing for maximum tile roof yield. Under any and all circumstances.
The Solar Roof Tiles have dependable waterproofing and ventilation system structures that perform well and have a lasting lifespan. The spraying test includes multi-dimension, strong wind, and waterproofing tests. We even spray water backwards beneath the tile. The water-proofing effect is still effective.
The Solar Roof Tiles module is attached using a high-quality, dependable MC4 connector, which provides a quick, safe, and dependable connection.
Dimensions
Model：Three arch surface
Width: 721 (+/- 2) mm
Length: 500 (+/- 1) mm
Thickness: 41 (+/- 1.5)mm（excluding junction box）

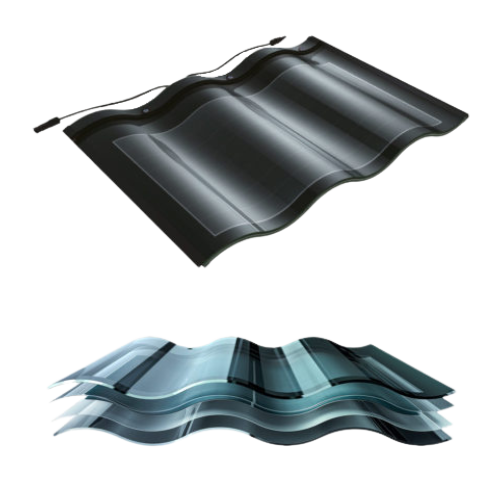

Structure
1st Layer: Super white curved glass
2nd Layer: POE film
3rd Layer: Miasole Flex Cell
4th Layer: POE film
5th Layer: Curved glass
Properties
Auxiliary materials: Protector & EPDM film
Illuminated surface size: (width）703 mm x（height）415 mm
Square meter content: 3.43 pcs/square meter
Single piece power: 30 Watt
Square meter power: 105 Watt
All additional side and top components available.
Tests
Tile double 85 test: Put tile into a 85°C and 85% humidity test case, to verify the heat and humidity resistance of the tile.
Tile TC 200 Test: to verify low and high temperature performance in the temperature environment between -40 degrees to 85 degrees.
Tile HF (wet frozen) Test: In 25 degrees to 85 degrees 85% humidity environment and -40 degrees to 25 degrees without humidity environment to verify the resistance of high and low temperature performance.
Tile 3C certification: Verify the safety performance of tile, including shot bag test, drop ball test, heat, moisture, radiation.
Tile fire certification: Test fire resistance.
Tile anti hail Test: Simulate the size of the actual hail hit on tile to test the anti-hail performance.
